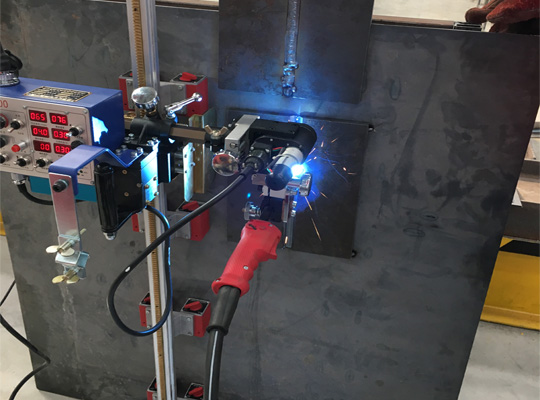

HK-100 Magnetic Straight Welding Swing Model Oscillation Auto Weld carriage

The from HK-100 small car essence, the control box, the X-Y slippery piece, the gun tongs, the direction round, leads a track straightly etc. the parts constitute.

１）   Little car owner's body: BE also a small car to drive device, include electrical engineering, the planet decelerates a box, driving wheel gear and leading to an etc..

２）   Control a box. Can regulate all actions of the small car, the detailed contents makes reference to follow-up "the control panel elucidation"

３）   The Horizontal move device: the Be welding to keep to sew(the if gather to pack)

   to make use of this device to adjust the torch position, avoid multifariously

   ambulation leading a track.

４）   The torch is tiny to adjust a slippery piece. BE the device that regulates the gun

   position, weld in the middle can carry on a top and bottom or so tiny adjust.

５）   Swing a machine: Weld process in various weld mode to need him to carry out.

６）   The gun clips to hold a machine. BE the device of the fixed gun, maintain and the

   adjustment is a convenient gun to dismantle to unload. The torch must clip

   tightly, notice and clip Be conducting electricity part, then will cause short-circuit

   or electric shock.

７）   AC outlet: In order to circumscribe the electric cable electric outlet, this the

  machine connects a ground of line to also connect with each other with this

  electric outlet. This electric cable electric outlet is responsible for a small car and

  sends the conjunction and the electricity supply of the silk machine.(Electric cable

  of another on carrying two branches, a connects to send the silk machine, the

  another connects power supply.)

８）   Hand handle: The ambulation equips originally, please fist this hand handle.

9 )  Leaving to match the hand handle, pulling to move this hand handle can let very

 conveniently the small car move freely on the orbit.

10)  Lead a track straightly. The convenient and small car runs about route. The gearing has strong dint always the magnetic iron, letting to lead a track to adsorb the work piece firmly on, the orientation is various to weld a need.

11)  The Magnetic iron: The strong dint leaves the match type magnetic iron, the please control all the switch to go to "OFF" while moving to lead a track.

12)  Lead to a round: Along the female material noodles roll over, guide accurate weld

the device of the part.

13)  The Gun: the Keep the gun or curved gun, the customer make choice of

purchase.

Main technical parameter

Welding technical parameters

Contents of package
