Main Parameters
Applicable Power Supply: Single Phase/Three Phase
Rated Input Voltage: 110V/220V/380V
Rated Input Power: 2.7kW-4.9kW
Rated Input Current: 18.7A-55.9A
Open Circuit Voltage: 56V
Protection Class: IP23
Insulation Class: H
Cooling System: Forced air cooling

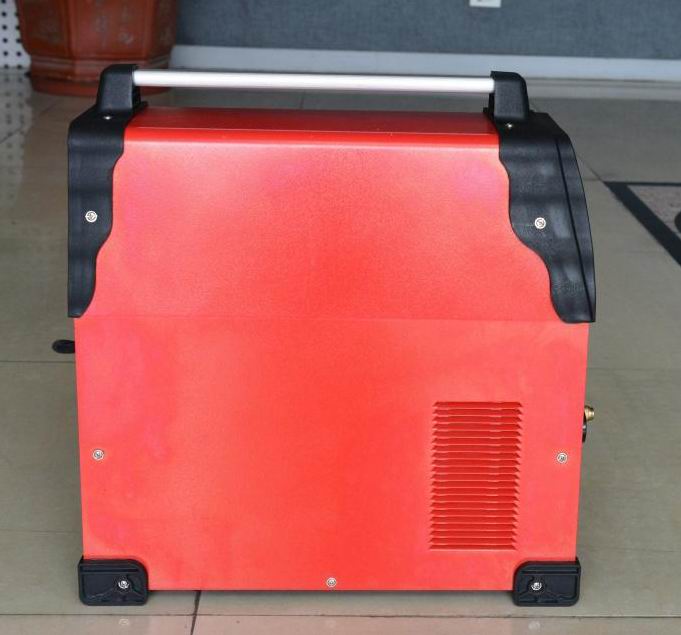

Our AC/DCP series IGBT inverter pulsed AC/DC TIG welder features great durability. It supports DC power source generated through one converting process and AC power source obtained through two converting processes. To be more specific, incoming 50 or 60 Hz AC power first is rectified to DC and filtered and then is fed into the inverter to be converted back to high frequency AC, and then is fed to the main power transformer, where it is transformed into low-voltage, high frequency AC, and then be filtered and rectified to DC power source, which could be used directly for welding. Also, the DC could be fed into the inverter again to generate AC suitable for welding if required.
The TIG welding machine can generate pulsed arc periodically, thus accommodating situations in need of higher welding quality. It also supports both TIG and MMA welding methods. It can be applied for welding varieties of metals including carbon steel, stainless steel, alloy steel, copper, titanium, etc.
Features
IGBT inverter applied on the TIG welding machine works with frequencies as high as 100KHZ, contributing to fast dynamic response.
Both regular 2T and semi-automatic 4T modes are supported. In 2T mode, operator will need to hold the 2T switch down during the whole welding process. While in 4T mode, operator simply needs to toggle the torch switch on, let go and then weld.
High frequency and high voltage are applied for arc striking, which is non-contact type. Therefore, the pulse welding machine is more suited to weld thin workpieces.
Technical Parameters
With Single Phase Power Supply
| Model | TIG160ACDCP-1 | TIG160ACDCP-2 | TIG200ACDCP-1 | TIG200ACDCP-2 | TIG250ACDCP-1 | TIG250ACDCP-2 | ||||||
| Rated Input Voltage | 1P 110V | 1P 220V | 1P 110V | 1P 220V | 1P 110V | 1P 220V | ||||||
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | ||||||
| Welding Mode | MMA | TIG | MMA | TIG | MMA | TIG | MMA | TIG | MMA | TIG | MMA | TIG |
| Rated Input Power | 4.5KW | 2.7KW | 4.9KW | 3.0KW | 4.5KW | 2.7KW | 4.9KW | 3.0KW | 4.5KW | 2.7KW | 4.9KW | 3.0KW |
| Rated Input Current | 55.9A | 34.0A | 30.4A | 18.7A | 55.9A | 34.0A | 30.4A | 18.7A | 55.9A | 34.0A | 30.4A | 18.7A |
| Duty Cycle (40°C 10min) | 60%140A | 60%150A | 60%140A | 60%190A | 60%230A | 60%250A | ||||||
| Open Circuit Voltage | 56V | 56V | 56V | 56V | 56V | 56V | ||||||
| Current Range | 10-140A | 10-150A | 10-140A | 10-190A | 10-230A | 10-250A | ||||||
| Min Efficiency | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||||||
| Power Factor | 0.73 | 0.73 | 0.73 | 0.73 | 0.73 | 0.73 | ||||||
| N.W | 24.5KG | 24.5KG | 25.0KG | 25.0KG | 32.5KG | 32.5KG | ||||||
| G.W. | 27.0KG | 27.0KG | 27.5KG | 27.5KG | 35KG | 35KG | ||||||
| Packing Dimension | 635×295×570mm | 635×295×570mm | 635×295×570mm | 635×295×570mm | 695×330×600mm | 695×330×600mm | ||||||
With Three Phase Power Supply
| Model | TIG250ACDCP-1 | TIG250ACDCP-2 | TIG320ACDCP-1 | TIG320ACDCP-2 | |||
| Rated Input Voltage | 3P 380V | 3P 380V | 3P 380V | 3P 380V | |||
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||
| Welding Mode | MMA | TIG | MMA | TIG | MMA | TIG | MMA |
| Rated Input Power | 4.5KW | 2.7KW | 4.9KW | 3.0KW | 4.5KW | 2.7KW | 4.9KW |
| Rated Input Current | 55.9A | 34.0A | 30.4A | 18.7A | 55.9A | 34.0A | 30.4A |
| Duty Cycle (40°C 10min) | 60%230A | 60%250A | 40%270A | 40%320A | |||
| Open Circuit Voltage | 56V | 56V | 56V | 56V | |||
| Current Range | 10-230A | 10-250A | 10-270A | 10-320A | |||
| Min Efficiency | 0.85 | 0.85 | 0.85 | 0.85 | |||
| Power Factor | 0.93 | 0.93 | 0.93 | 0.93 | |||
| N.W | 28.5KG | 28.5KG | 33.2KG | 33.2KG | |||
| G.W. | 31KG | 31KG | 35.8KG | 35.8KG | |||
| Packing Dimension | 695×330×600mm | 695×330×600mm | 695×330×600mm | 695×330×600mm | |||
Customization
The appearance, welding current, product manuals and package of our TIG
welding machine can be customized according to customer requirements.
