The Stubby Gas Lens Pyrex Cup Kit be fit for all 9, 20 & 25 series tig torches.
(Please select according to the diameter of your tungsten electrode)
Package including
1) 6 pcs #10 Pyrex Glass Cup
2) 1 pcs 41V33 Short Back Cup for Tig Welding Torch
3) 1 pcs 41V35 Medium Back Cup for Tig Welding Torch
4) 1 pcs 41V24 Long Back Cup for Tig Welding Torch
5) 2 pcs 45Vxx Collets Body Gas Lens for Tig Welding Torch (Please select according to the diameter of your tungsten electrode)
6) 4 pcs 13Nxx Collet for Tig Welding Torch (Please select according to the diameter of your tungsten electrode)
7) 10 pcs Temperature Resistant O-rings
8) 1 pcs Gas Lens Insulator
Advantage for transparent shield cup:
1) It gives welders an extrodinary visibility and comfortable feeling during the
welding job.It is especially designed to helps to weld precision and tiny job
where it requires to see the location very clearly.For example: it is widely
used along with our Fortuneweld brand precision cold welder PCW220.
2) It helps to make uniform gas flow for welding which can help welding quality
to to high.Also,it can also help to save at least 30% gas comparing to common
ceramic shield cup.
3) They are widely compatible with original common spare parts of TIG torch.In
this case,
A) as to #10 transparent shield cup for torch WP9/20/25/24,you need to buy one
extra O ring to complete the whole spare parts on the basis of original other
spare parts.
B) as to #12 big or small transparent shield cup for torch WP17/26/18,you need
to buy one extra O ring to complete the whole spare parts on the basis of
original other spare parts.
4) You can save a lot of money by choosing our transparent shield cup.One one
hand,you do not need to spend lots of money to buy other corresponding parts
such as collet or collet body,etc.On another hand,it has longevity than other
ceramic type shield cup because there is no too much touch with heat.

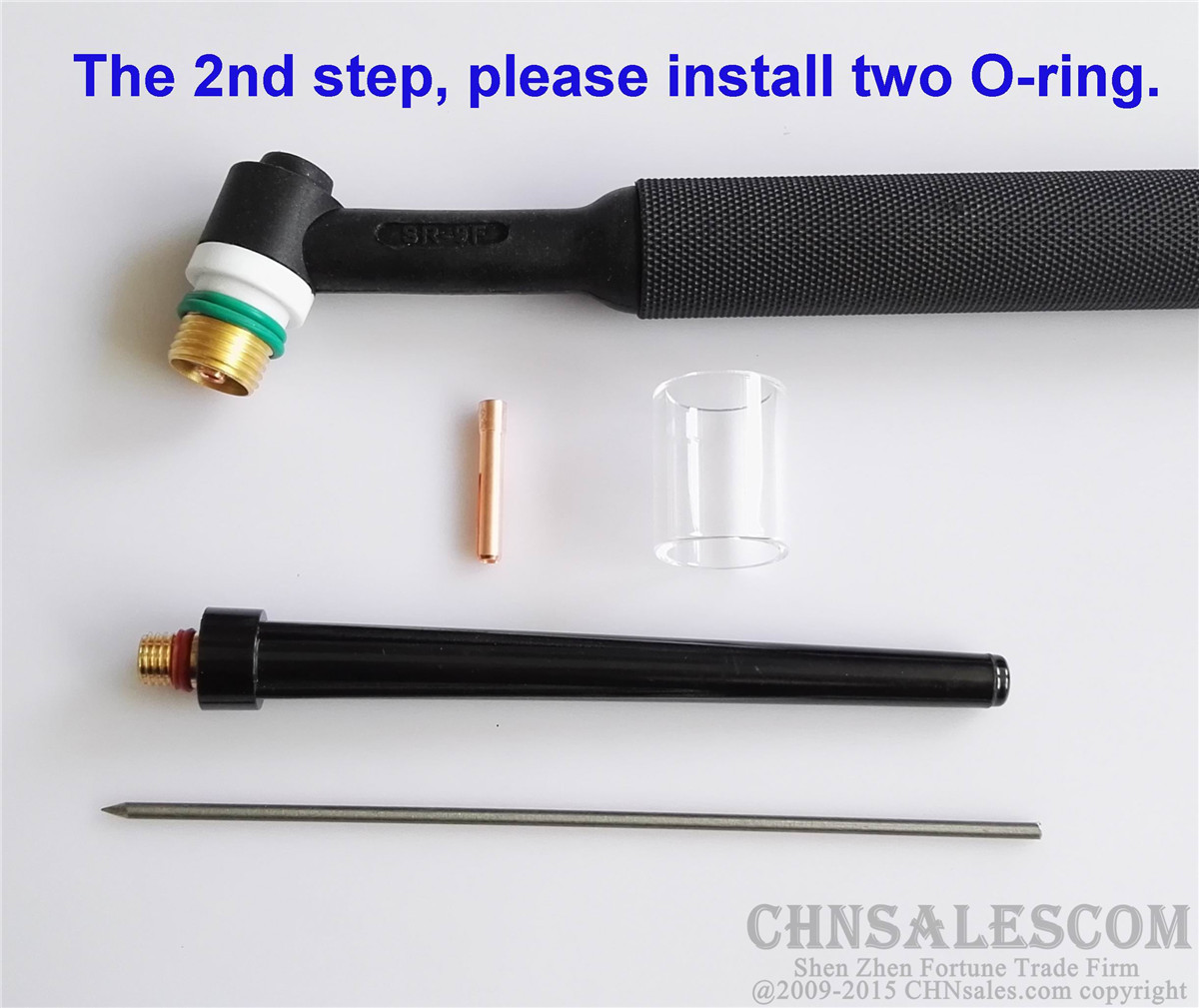

5) It is very easy to assemble. You just need to push the transparent shield cup
and make it installed firmly and seamlessly.
Kind reminder:
1) Please avoid to use all kinds of transparent shield cup where there are
spatter during welding job
2) Please do not knock on the transparent shield cup even if it can bear high
temperature.
3) Pleas keep it in mind that all kinds of transparent shield cup needs to be
used accordiing the welding range. For DC output welding,the maximum current is
170 A. For AC output welding,the maximum current is 90A.
Item Description
2. Region free and easy to use.
3. Can be used of WP-9 WP-20 WP-25 TIG Welding Torch
4. The Brand of Machine would be Rilon, Riland, Jasic, Mitech, Chiry, UNT, Krypton, Longetivity, Berlan and so on .
Lincoln PTA-9 PTA-9V PTA-9 PTA-20V PTW-25 Tig Welding Torches,
Miller Diamondback DB9 DB9V DB20 DB20V DB25 Tig Welding torches
